Hubbell Hubbell H320R

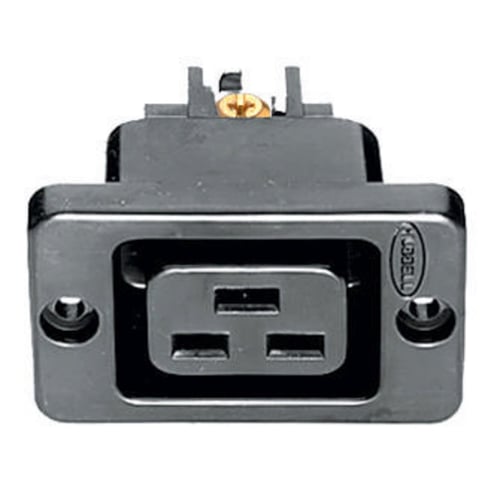

Hubbell H320R
Kirby Risk #: 497436
UPC: 78358577705, 783585777054, 00783585777054
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, IEC 320 Devices,Female Receptacle, 16A 250V, International Rated, Pressure ScrewTerminal, Black, Single Pack
Modified Industry Description
20/16A 250V IEC320 FEMALE RCPT
AD Description
Wiring Device-Kellems H320R 1-Phase Female Heavy Duty Non-Grounding Panel Mount Single Standard Straight Blade Receptacle, 250 VAC, 16/20 A, 3 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
20/16
|
|---|---|
| Application |
Heavy Duty
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Screw Terminal
|
| Conductor Size |
North American-#16AWG-#12AWG; International-1.55mm²-2.5mm².
|
| Country of Origin |
PR
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
IEC321
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Size |
1.41 X 1.89 X 1.52
|
| Special Features |
|
| Standard |
CSA certified 20A 250V AC-File No. 17337;UL Listed 20A 250V AC-File No. E2186
|
| Sub_Brand |
Straight Blade Devices
|
| Type |
IEC Appliance Coupler Single
|
| Voltage Rating |
250
|
| Wattage |
7500Watts
|
