Hubbell Hubbell HBL2345
Hubbell HBL2345
Kirby Risk #: 496940
UPC: 78358503800, 783585038001, 00783585038001
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 20A 480V 2-Pole 3-Wire Grounding, L8-20P, Screw Terminal,Gray
Modified Industry Description
LOCKING MALE FLGD INLET NEMA L8-20P
AD Description

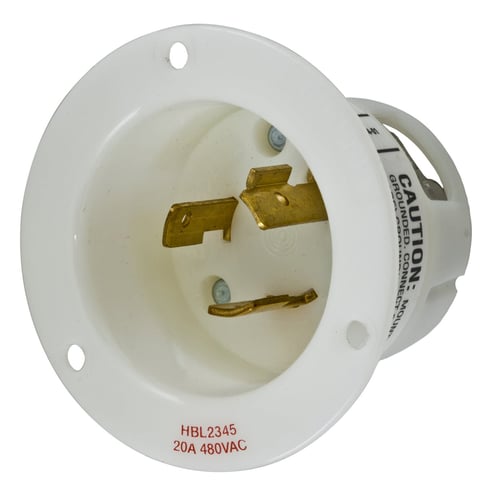

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2345 1-Phase Extra Heavy Duty Grounding Flanged Inlet With Mounting Screw, 480 VAC, 20 A, 2 Poles, 3 Wires, White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminals
|
| Conductor Size |
#12AWG to #10AWG
|
| Country of Origin |
PR
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
L8-20P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Flanged Inlet
|
| Voltage Rating |
480
|
| Wattage |
9.6k
|
