Hubbell Hubbell HBL2815SW
Hubbell HBL2815SW
Kirby Risk #: 496455
UPC: 78358523212, 783585232126, 00783585232126
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged In 30A 3-Phase Wye 120/208V AC, 4-Pole 5-WireGrounding, L21-30P, Screw Terminal , Gray
Modified Industry Description
LOCKING WATERTIGHT MALE INLET
AD Description

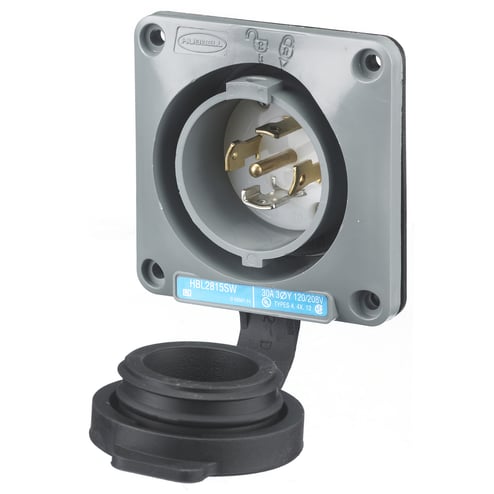

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2815SW 3-Phase Grounding Standard Single Shrouded Watertight Locking Flanged Inlet, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Gray/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Gray/White
|
| Connection |
Screw Terminals
|
| Conductor Size |
#12AWG to #8AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4X/12/IP66
|
| Environmental_Conditions |
Watertight
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA L21-30P/WD1/WD5
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
3-Phase Grounding Standard Single Shrouded Watertight
|
| Voltage Rating |
120/208
|
| Wattage |
6,240
|
