Hubbell Hubbell HBL7409C
Hubbell HBL7409C
Kirby Risk #: 496449
UPC: 78358503755, 783585037554, 00783585037554
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, White
Modified Industry Description
20A 120/208V FLANGE WHITE
AD Description

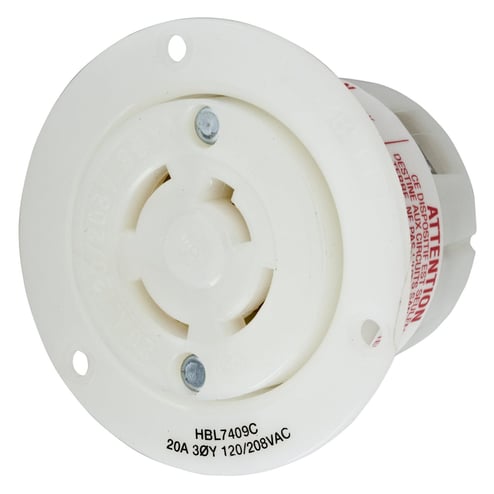

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7409C Flanged Non-Grounding Standard Single Locking Receptacle, 120Y/208 VAC, 20 A, 4 Poles, 4 Wires, White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminals
|
| Conductor Size |
#12 AWG to #10 AWG
|
| Country of Origin |
PR
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single Receptacle
|
| Voltage Rating |
120/208
|
| Wattage |
4,160
|
