Appleton Appleton EYSF50


Description

Industry Description

UNILETS EYS Series 25 PCT Fill Vertical Conduit Sealing Fitting, Size: 1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered FNPT, Turning Radius: 1.81 IN, Length: 3-

Modified Industry Description

1/2 MALL COND SEAL

AD Description

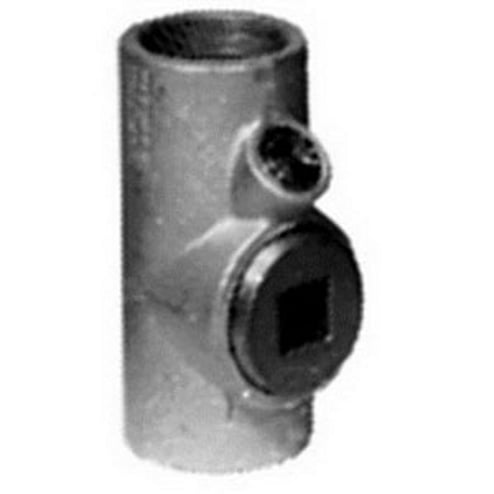

Appleton® UNILETS® EYSF50 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated

Vendor Description

These Appleton® sealing fittings minimize the passage of gases and vapors and prevent the passage of flames from one portion of a conduit system to another. They prevent pressure piling within conduit system and contain any explosion that occurs. The EYS series is used for sealing vertical conduit, and provides a large opening for damming and filling.

Specifications

Application
For Use With Threaded Rigid Metal Conduit And IMC
Brand Name
Appleton
Connection
Tapered FNPT
Country of Origin
MX
Finish
Triple Coated
Material
Malleable Iron
Mounting
Female/Female
Special Features

  • 25% fill vertical conduit sealing fittings
  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Chromate/epoxy powder coated/zinc electroplated finish
  • Large opening for damming and filling
  • Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
  • Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
  • Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
  • Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
  • Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
  • Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
  • Restrict any explosion to the sealed off enclosure
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
  • Tapered FNPT connection
Standard
UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
Sub_Brand
Appleton
Trade_Size
1/2
Type
Dust-Ignitionproof Explosionproof Raintight
