Hubbell Hubbell H320B
Hubbell H320B
Kirby Risk #: 490654
UPC: 78358577709, 783585777092, 00783585777092
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, IEC 320 Devices,Inlet, 16A 250V, International Rated, Pressure Screw Terminal, Black,Single Pack
Modified Industry Description
20/16A 250V IEC320 MALE INLET
AD Description

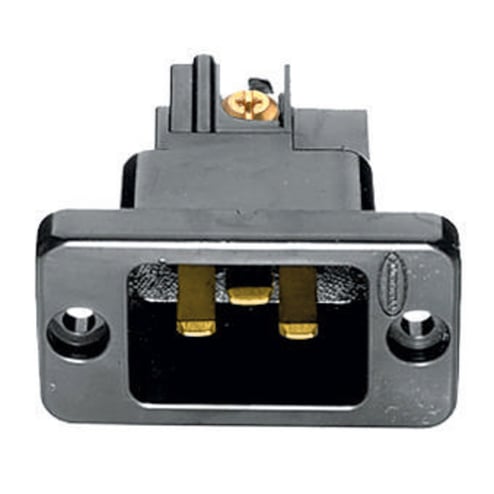

Wiring Device-Kellems H320B 1-Phase Chassis Grounding Heavy Duty Single Standard Straight Blade Inlet, 250 VAC, 16/20 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
16/20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Color |
Black
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14AWG to #12AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
Insulated Body
|
| Length1 |
2.9100
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
IEC 320, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact.
|
| Type |
Chassis Single Inlet
|
| Voltage Rating |
250
|
| Wattage |
5,000
|
