Hubbell Hubbell HBL8200
Hubbell HBL8200
Kirby Risk #: 490515
UPC: 78358543560, 783585435602, 00783585435602
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown,Single Pack
Modified Industry Description
15A 125V RECPT BROWN HOSPITAL
AD Description

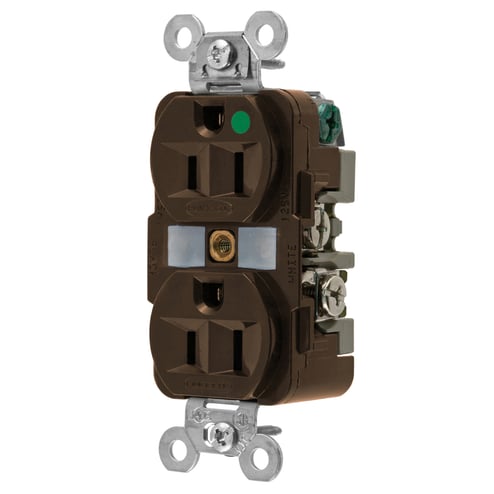

Wiring Device-Kellems HBL8200 Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Extra Heavy Duty Hospital Grade
|
| Brand Name |
Hubbell
|
| Color |
Brown
|
| Connection |
Back and Side Wired Terminal Screws
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Hospital
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
NEMA 5-15R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single Phase Motors
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Duplex Extra Heavy Duty Self-Grounding
|
| Voltage Rating |
125
|
| Wattage |
1875Watts
|
