Hubbell Hubbell HBL5362R


Description

Industry Description

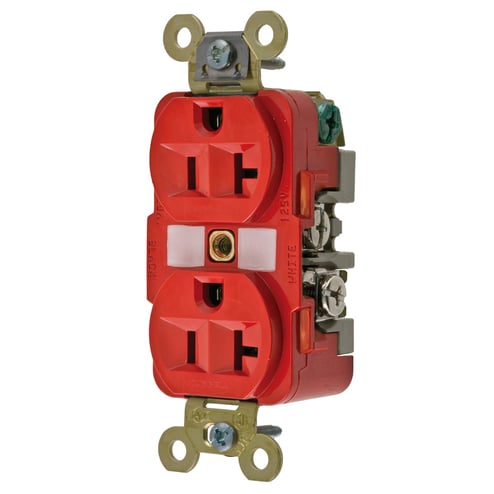

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Red,Single Pack

Modified Industry Description

20A 125V - RED DUPLEX RECEPTACLE, EXTRA HEAVY DUTY, INDUSTRIAL GRADE, 2 POLE, 3 WIRE

AD Description

Wiring Device-Kellems HBL5362R Duplex Grounding Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red

Specifications

Amperage Rating
20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Red
Connection
Terminal Screws
Conductor Size
#14 AWG to #12 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite/Thermoplastic
Mounting
Screw Mount
NEMA_Configuration
5-20R
NEMA_Rating
NEMA 5-20R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
Single Phase Motors
Size
Standard Sized Product
Special Features

  • #10-32 silicon bronze (green) ground screw
  • #10-32 silicon bronze (nickel plated if neutral) terminal screw
  • 0.037 in brass power contact
  • 0.05 in brass mounting strap
  • 1 piece brass integral ground strap
  • 14 to 10 AWG solid or stranded copper conductor terminal accommodation
  • 3-wires grounding
  • Back wired ground terminal allows faster, easier installation
  • Deep body design with circuit ID face
  • Finder groove face
  • Indoor dry unless protected by additional means
  • Reinforced PET base
  • Traditional duplex receptacle
  • Withstands 2000 VAC dielectric voltage
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Duplex Grounding Heavy Duty
Voltage Rating
125
Wattage
2500Watts
