Hubbell Hubbell HBL1223L

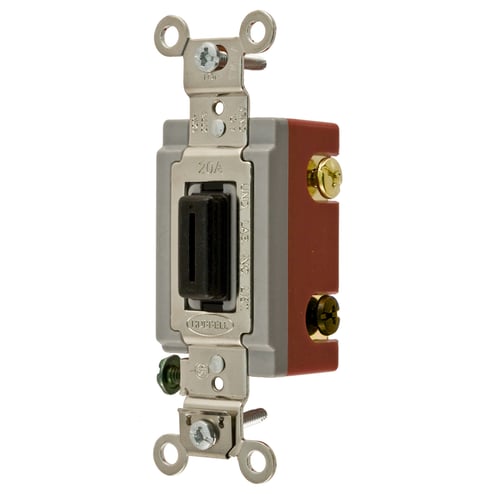

Hubbell HBL1223L
Kirby Risk #: 490318
UPC: 78358543188, 783585431888, 00783585431888
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls, LockingIndustrial Grade, Toggle Switches, General Purpose AC, Locking ThreeWay, 20A 120/277V AC, Back and Side Wired, Black Key Guide, Packed withKey
Modified Industry Description
20A 120/277V 3-WAY BLACK INDUSTRIAL GRADE TOGGLE SWITCH, BACK/SIDE WIRED
AD Description
Wiring Device-Kellems HBL® HBL1223L 2-Position 3-Way Extra Heavy Duty General Purpose Industrial Grade Non-Cylindrical Locking Toggle Switch, 120/277 VAC, 20 A, 5540 W Power Rating
Specifications
| Action |
Snap
|
|---|---|
| Actuator |
Double Ended Key/Toggle
|
| Amperage Rating |
20
|
| Application |
Industrial Grade
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Terminal Screws
|
| Contact_Configuration |
2-Position
|
| Contact_Rating |
Full Rated
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
-40 to 75 deg C Temperature
|
| Indicator |
Dot Indicates On
|
| Load |
Inductive or Resistive
|
| Lock_Type |
Non-Cylindrical
|
| Material |
Nylon Toggle/Thermoset Body
|
| Mounting |
Screw
|
| Number_Of_Poles |
3-Way
|
| Operating_Cycles |
50000
|
| Size |
Standard Product Size
|
| Special Features |
Standard Product
|
| Standard |
UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
2-Position 3-Way Extra Heavy Duty General Purpose Industrial Grade Non-Cylindrical
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
