Hubbell Hubbell HBL1221W

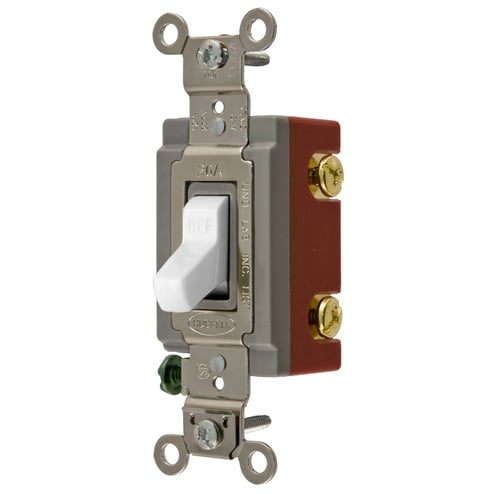

Hubbell HBL1221W
Kirby Risk #: 490288
UPC: 78358543158, 783585431581, 00783585431581
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, White
Modified Industry Description
20A 120/277V 1 POLE WHITE INDUSTRIAL GRADE TOGGLE SWITCH, BACK/SIDE WIRED
AD Description
Wiring Device-Kellems HBL® HBL1221W Extra Heavy Duty General Purpose Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W, 2-Position
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
20
|
| Application |
Industrial Grade
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Back and Side Wired
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
Single
|
| Operating_Cycles |
50k
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
