Hubbell Hubbell HBLDS6
Hubbell HBLDS6
Kirby Risk #: 490227
UPC: 78358543070, 783585430706, 00783585430706
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Disconnect Switches, Unfused Switch, 60A 600V AC,Screw Terminals, Gray, NEMA 4X Enclosure
Modified Industry Description
60A 600V - 3 POLE UNFUSED DISCONNECT SWITCH
AD Description

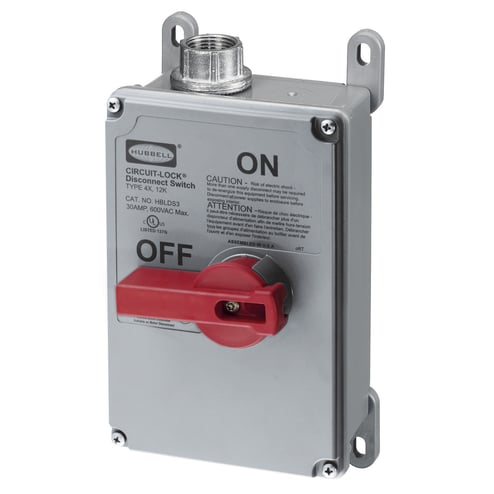

Wiring Device-Kellems Circuit-Lock® HBLDS6 2-Position Labelless Unfused Disconnect Switch, 600 VAC, 60 A, 40 hp, 3 Poles
Vendor Description
Hubbell® Circuit-Lock® non-metallic disconnects are frequently used in harsh environments. Frequent wash down, hot and high pressure water, caustic cleaning agents and UV light are common place. Hubbell® new laser marked covers ensure that ratings are now permanently marked.
Specifications
| Action |
Snap
|
|---|---|
| Actuator |
Lever
|
| Amperage Rating |
60
|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Connection |
Terminal Screws
|
| Contact_Configuration |
Two Position
|
| Country of Origin |
PL
|
| Enclosure |
NEMA 4X
|
| Environmental_Conditions |
NEMA 4X
|
| Frequency_Rating |
60
|
| Material |
Composite
|
| Mounting |
Mounting Feet
|
| Number_Of_Poles |
3
|
| Operating_Cycles |
6k
|
| Operating_Temperature |
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 746C
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
2-Position Labelless Unfused
|
| Voltage Rating |
600
|
| Width_2 |
9.3000
|
| Width_3 |
8.8000
|
