Hubbell Hubbell HBL460MI7W
Hubbell HBL460MI7W
Kirby Risk #: 490124
UPC: 78358540605, 783585406053, 00783585406053
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female Mechanically Interlocked Receptacle,60A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws,Red, Watertight
Modified Industry Description
60A 480V 3 POLE 4 WIRE FEMALE RECEPTACLE
AD Description

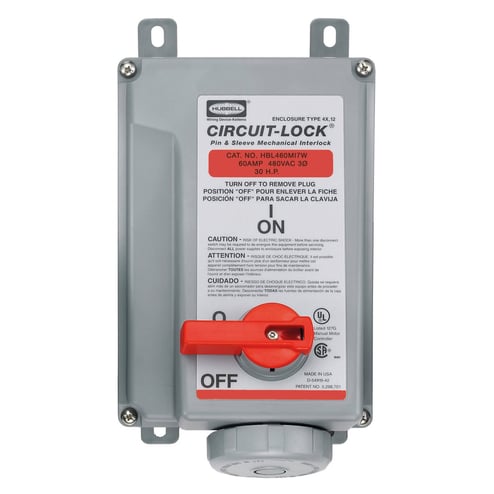

Wiring Device-Kellems Circuit-Lock® HBL460MI7W Female Grounding Watertight Pin and Sleeve Mechanical Interlock, 480 VAC, 60 A, 3 Poles, 4 Wires
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#8 AWG to #2 AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Threaded
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Female Grounding Watertight
|
| Voltage Rating |
480
|
| Wattage |
28,800
|
