Hubbell Hubbell HBL460P5W
Hubbell HBL460P5W
Kirby Risk #: 490062
UPC: 78358540485, 783585404851, 00783585404851
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Male, Plug, 60A 3-Phase Delta 600V AC, 3-Pole4-Wire Grounding, Terminal Screws, Black, Watertight
Modified Industry Description
60A 600V 3 POLE 4 WIRE MALE PIN PLUG
AD Description

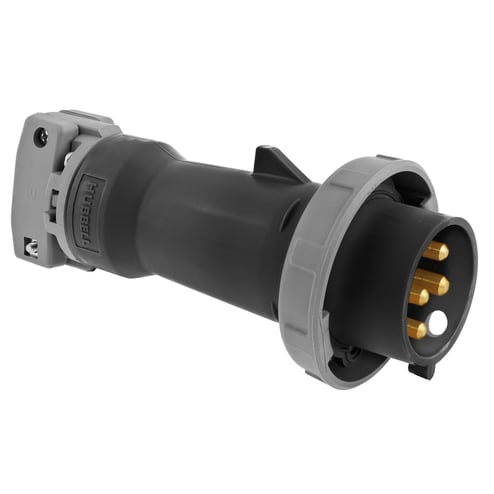

Wiring Device-Kellems HBL460P5W Grounding Male Watertight Pin & Sleeve Plug, 600 VAC, 60 A, 3 Poles, 4 Wires, Black
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Pressure Terminal Screws
|
| Conductor Size |
#8 AWG to #2 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Male Watertight
|
| Voltage Rating |
600
|
| Wattage |
18000
|
