Hubbell Hubbell HBL420R5W
Hubbell HBL420R5W
Kirby Risk #: 490007
UPC: 78358540441, 783585404417, 00783585404417
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female Receptacle, 20A 3-Phase Delta 600V AC,3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
Modified Industry Description
20A 600V 3 POLE 4 WIRE FEMALE RECEPTACLE
AD Description

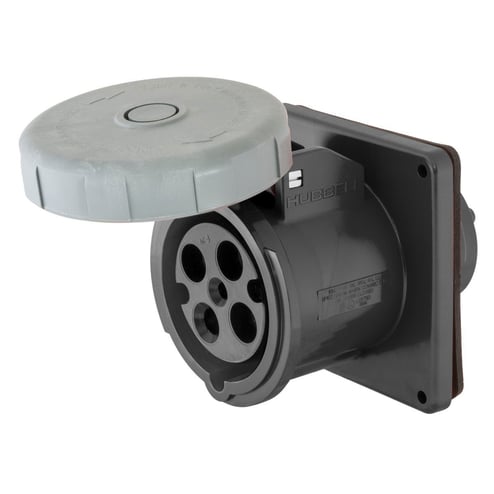

Wiring Device-Kellems HBL420R5W Grounding Single Flanged Watertight Pin and Sleeve Receptacle, 600 VAC, 20 A, 3 Poles, 4 Wires, Black
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
High Ampacity Watertight Connections
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#14 AWG to #10 AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Grade |
Industrial
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Single Flanged Watertight
|
| Voltage Rating |
600
|
| Wattage |
12,000
|
