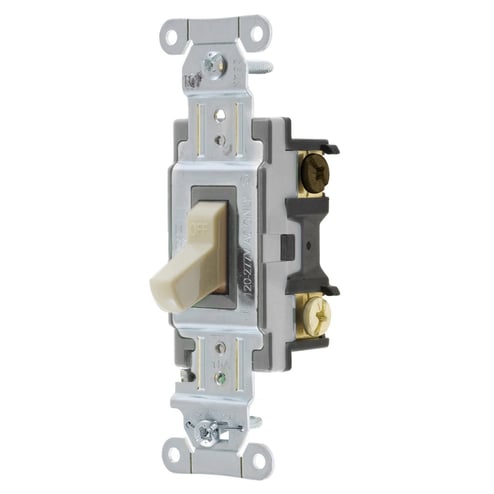

Hubbell Hubbell CS315I
Hubbell CS315I
Kirby Risk #: 489808
UPC: 78358590205, 783585902050, 00783585902050
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Specification Grade Commercial Series, Toggle Switches, General PurposeAC, Three Way, 15A 120/277V AC, Side Wired Only, Ivory
Modified Industry Description
15A 120/277V 3 WAY IVORY TOGGLE SWITCH, SIDE WIRED ONLY
AD Description
Wiring Device-Kellems CS315I 2-Position 3-Way General Purpose Toggle Switch, 120/277 VAC, 15 A, 4155 W
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
15
|
| Application |
Commercial Grade
|
| Brand Name |
Hubbell
|
| Color |
Ivory
|
| Connection |
Side Wired Only
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Material |
Nylon Toggle/Thermoset Body
|
| Mounting |
Screw
|
| Number_Of_Poles |
3-Way
|
| Operating_Cycles |
50000
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
Standard Product
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
2-Position 3-Way General Purpose
|
| Voltage Rating |
120/277
|
| Wattage |
4.155
|
