Hubbell Hubbell CS115
Hubbell CS115
Kirby Risk #: 489689
UPC: 78358590100, 783585901008, 00783585901008
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

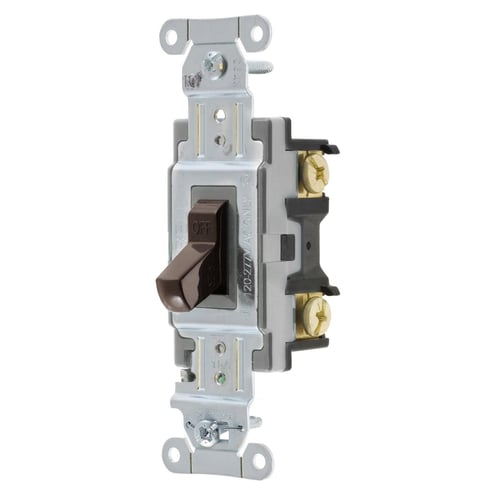

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired,Brown
Modified Industry Description
15A 120/277V 1 POLE BROWN TOGGLE SWITCH, SIDE WIRED
AD Description
Wiring Device-Kellems CS115 General Purpose Standard Toggle Switch, 120/277 VAC, 15 A, 4155 W, 2-Position
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
15
|
| Application |
Commercial Grade
|
| Brand Name |
Hubbell
|
| Color |
Brown
|
| Connection |
Side Wired Only
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Material |
Nylon
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
Single
|
| Operating_Cycles |
50k
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
120/277
|
| Wattage |
4.155
|
