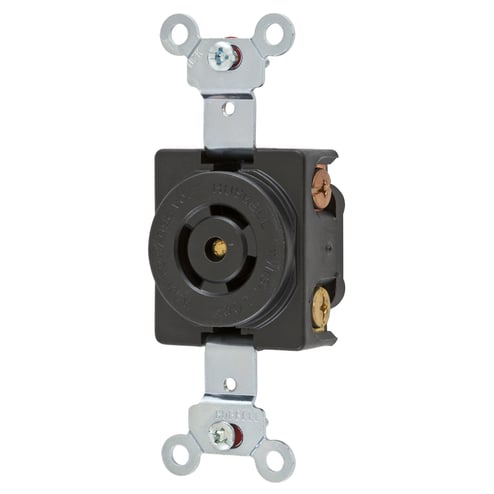

Hubbell Hubbell HBL7582
Hubbell HBL7582
Kirby Risk #: 489604
UPC: 78358523771, 783585237718, 00783585237718
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flush Receptacle, 10A 250V 125V, 2-Pole 3-Wire Grounding, Non-NEMA,Screw Terminal, Black
Modified Industry Description
10A 250V / 15A 125V - BLACK LOCKING Flush Receptacle, 2 Pole, 3 Wire
AD Description
Wiring Device-Kellems Midget Twist-Lock® HBL7582 1-Phase Non-Grounding Standard Locking Receptacle, 125/250 VAC, 10/15 A, 3 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
10/15
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
IP20
|
| Environmental_Conditions |
IP20
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 70
|
| Type |
1-Phase Non-Grounding Standard
|
| Voltage Rating |
125/250
|
| Wattage |
3750Watts
|
