Hubbell Hubbell HBL7487
Hubbell HBL7487
Kirby Risk #: 489528
UPC: 78358523746, 783585237466, 00783585237466
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Midget TwistLock,Industrial, Flanged Receptace, l5A 125/250V, 3-Pole 3-Wire NonGrounding, ML-3R, Screw Terminal, Steel
Modified Industry Description
15A 125/250V - LOCKING Flanged Receptacle, 3 Pole, 3 Wire, MIDGET
AD Description

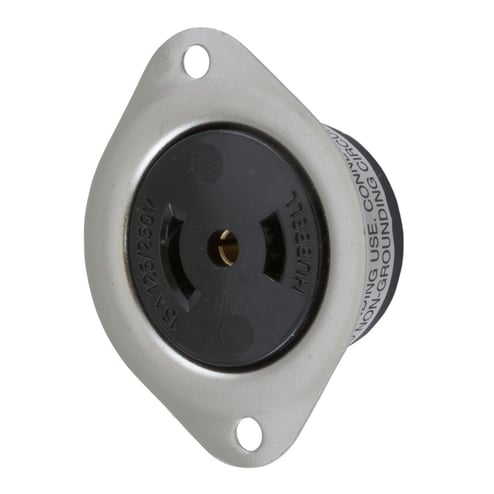

Hubbell® HBL7487 Flanged Receptacle, 125/250 VAC, 15 A, 3 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Brass
|
| Mounting |
Flanged
|
| NEMA_Configuration |
MI-3R
|
| NEMA_Rating |
ML-3R
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
3
|
| Size |
Midget Locking Devices
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Flanged Receptacles
|
| Voltage Rating |
125/250
|
| Wattage |
3750Watts
|
