Hubbell Hubbell HBL7486
Hubbell HBL7486
Kirby Risk #: 489527
UPC: 78358523744, 783585237442, 00783585237442
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Midget TwistLock,Industrial, Flanged Inlet, 15A 125/250V, 3-Pole 3-Wire Non Grounding,ML-3P, Screw Terminal, Steel
Modified Industry Description
15A 125/250V FLANGED INLET MIDGET
AD Description

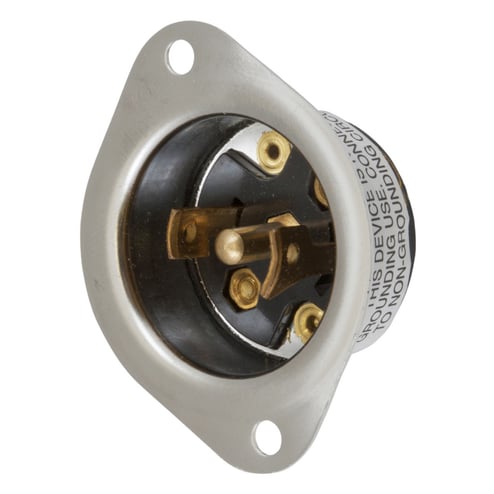

Wiring Device-Kellems Twist-Lock® HBL7486 Heavy Duty Midget Non-Grounding Locking Flanged Inlet, 125/250 VAC, 15 A, 3 Poles, 3 Wires, Metallic
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Metallic
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14 AWG
|
| Country of Origin |
PR
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Flange
|
| NEMA_Configuration |
ML-3P
|
| NEMA_Rating |
NEMA ML-3P
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
3
|
| Phase |
Single Phase Motors
|
| Size |
Midget Locking
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Heavy Duty Midget Non-Grounding
|
| Voltage Rating |
125/250
|
| Wattage |
3750
|
