Hubbell Hubbell HBL7485
Hubbell HBL7485
Kirby Risk #: 489483
UPC: 78358523741, 783585237411, 00783585237411
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Midget TwistLock,Industrial, Male Plug, 15A 125/250V, 3-Pole 3-Wire Non Grounding, ML-3P,Screw Terminal, Black
Modified Industry Description
15A 125/250V - LOCKING MALE PLUG, 3 Pole, 3 Wire, MIDGET
AD Description

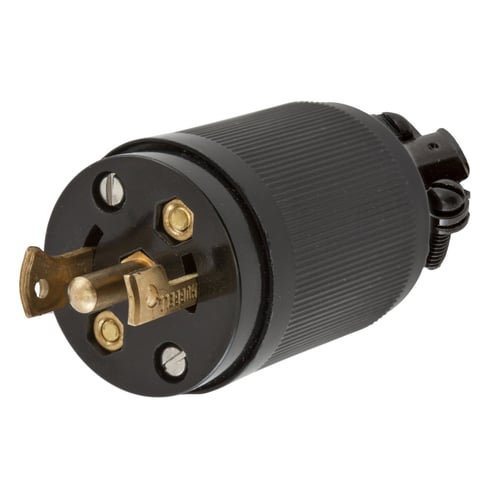

Wiring Device-Kellems Twist-Lock® HBL7485 1-Phase Male Midget Non-Grounding Straight Locking Plug, 125/250 VAC, 15 A, 3 Poles, 2 Wires, Black
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Black and White
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
14 to #12AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
ML-3P
|
| NEMA_Rating |
ML-3P
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
3
|
| Size |
Midget Locking
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Insulgrip
|
| Voltage Rating |
125/250
|
| Wattage |
3750
|
