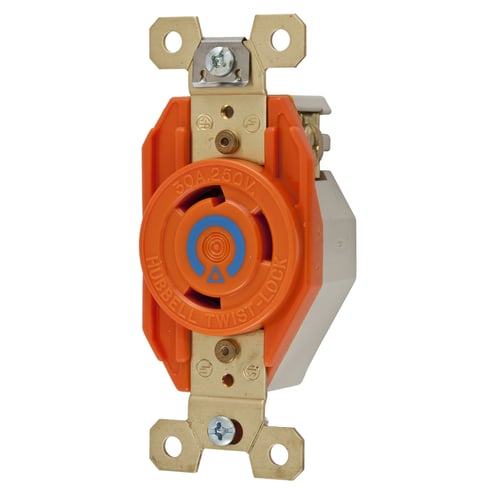

Hubbell Hubbell IG2620
Hubbell IG2620
Kirby Risk #: 489445
UPC: 78358587234, 783585872346, 00783585872346
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, IsolatedGround Industrial, Flush Receptacle, 30A 250V, 2-Pole 3-Wire Grounding,L6-30R, Screw Terminal, Orange
Modified Industry Description
30A 250V RECPT ORANGE IG
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® IG2620 Heavy Duty Isolated Grounding Single Locking Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, Orange
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Orange
|
| Connection |
Screw Terminals
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4X/12/IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA L5-30R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Heavy Duty Isolated Grounding Single
|
| Voltage Rating |
250
|
| Wattage |
7.5k
|
