Hubbell Hubbell CS6370
Hubbell CS6370
Kirby Risk #: 489404
UPC: 78358587130, 783585871301, 00783585871301
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Receptacle, 50A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal,Black
Modified Industry Description
50 A 125 V 2 Pole 3 Wire Grounding Non NEMA Black TwistLock Receptacle
AD Description

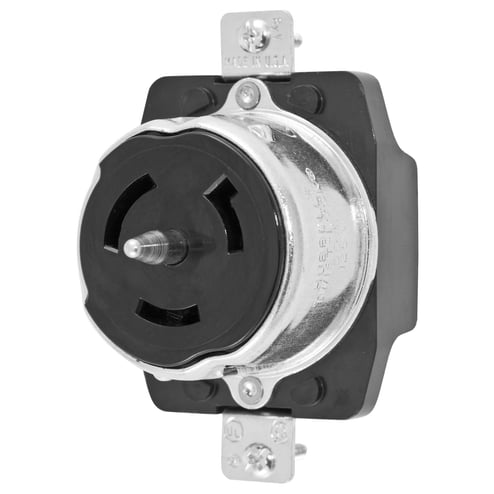

Wiring Device-Kellems Twist-Lock® CS6370 1-Phase Heavy Duty Self-Grounding Single Standard Locking Receptacle, 125 VAC, 50 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Screw Terminal
|
| Conductor Size |
#10 AWG to #6 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
2.69 X 2.12 X 2.36
|
| Special Features |
|
| Standard |
UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single Receptacle
|
| Voltage Rating |
125
|
| Wattage |
6,250
|
