Hubbell Hubbell HBL4723VY

Name: Hubbell HBL4723VY
Brand: Hubbell
SKU: 489317
Price: 28.85 USD
Availability: InStock

Hubbell HBL4723VY

Kirby Risk #: 489317

UPC: 78358523680, 783585236803, 00783585236803

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Valise, MalePlug, 15A 125V, 2-Pole 3-Wire Grounding, L5-15P, Screw Terminal, Yellow

Modified Industry Description

15A 125V MALE YELLOW

AD Description

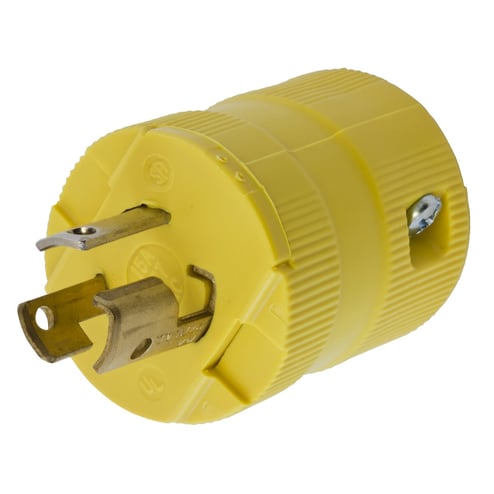

Wiring Device-Kellems Twist-Lock® HBL4723VY Extra Heavy Duty Grounding Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Amperage Rating	15
Application	Extra Heavy Duty Industrial
Brand Name	Hubbell
Color	Yellow
Connection	Pressure Screw Terminal
Conductor Size	#14AWG to #12AWG
Cord_Type	All Listed Portables
Country of Origin	US
Enclosure	IP20
Environmental_Conditions	Indoor Dry unless Protected by Additional Means
Grade	Industrial
Material	Composite
Mounting	Cord Mounted
NEMA_Rating	NEMA L5-20P
Number_Of_Poles	2
Number_Of_Wires	3
Phase	1
Size	Standard Sized
Special Features	14 AWG stranded copper wire terminal accommodation 14 to 12 AWG wire Brass blade, steel terminal screw and ground screw Cold rolled steel nickel plated terminal clamp Indoor dry unless protected by additional means Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise Powerful cord grips prevent conductor slippage and strain on wiring terminals Steel zinc plated cord clamp screw, body holding screw Totally insulated impact and crush resistant nylon body Two captive multiple drive assembly screws Withstands 2000 VAC dielectric voltage Yellow nylon blade holder, cord clamp
Standard	NEMA WD1 and WD5, UL498
Sub_Brand	Hubbell Wiring Device-Kellems
Temperature_Rating	-40 to 75
Type	Extra Heavy Duty Grounding
Voltage Rating	125
Wattage	1,875
