Hubbell Hubbell ATD500C
Hubbell ATD500C
Kirby Risk #: 489304
UPC: 78358539245, 783585392455, 00783585392455
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Modified Industry Description
ADAPTIVE TECH/DUAL CEILING OCCUPANCY SENSOR, 500 SQ FT
AD Description

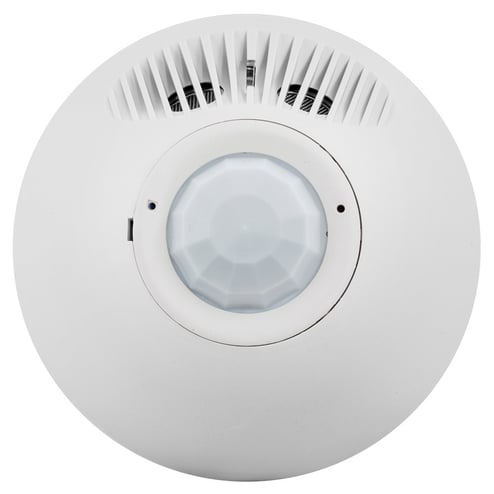

Wiring Device-Kellems H-MOSS® ATD500C Dual Technology Ceiling Mount Occupancy Sensor, 24 VDC, Passive Infrared/Ultrasonic Sensor, 500 sq-ft Coverage, 180 deg Viewing, Ceiling Mount
Vendor Description
Dual technology occupancy sensors combine both passive infrared (PIR) and ultrasonic (US) technologies for maximum reliability. Because US and PIR need to both detect occupancy to turn lighting on, dual technology sensors minimize the risk of lights coming on when the space is unoccupied false triggering. Continued detection by only one technology then keeps lighting on as necessary. Dual technology sensors offer the best performance for most applications.
Specifications
| Application |
Ceiling Mount
|
|---|---|
| Brand Name |
Hubbell
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Functions |
Wire Leads
|
| Indicator |
PIR= Red LED, Ultrasonic= Green LED
|
| Load |
Load is a function of the control unit
|
| Mounting |
Screw Mount
|
| Operating_Cycles |
6k
|
| Operating_Temperature |
32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
|
| Sensing_Distance |
500
|
| Sensitivity |
Adjustable
|
| Sensor |
Infrared
|
| Special Features |
|
| Standard |
UL 20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Supply_Voltage |
24 DC From Control Unit
|
| Target_Size |
People
|
| Type |
Ceiling and Wall Mount Sensors
|
| Voltage Rating |
24 DC
|
| Wattage |
1800-2400
|
