Hubbell Hubbell HBL45105


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Twist-Lock,VariLoad,Flush Receptacle, 30A 250V DC/600V AC, 4-Pole 5-Wire Grounding,Non-NEMA, Screw Terminal, Black, Unique "A" Center Pin

Modified Industry Description

30A 600/250V RECPT BLACK

AD Description

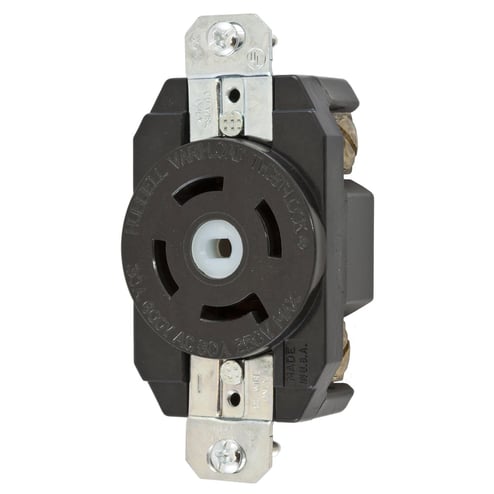

Wiring Device-Kellems Twist-Lock® HBL45105 Flush Mount Heavy Duty Standard Single Locking Receptacle, 600 VAC/250 VDC, 30 A, 4 Poles, 5 Wires, Black

Vendor Description

In many large plants and laboratories the number of circuits of different ratings and frequency is greater than the number of blade configurations available in conventional wiring devices. Prior to NEMA configuration standardization the solution was "Variload® Twist-Lock®" devices with four non-interchangeable center pin and slot configurations that can be assigned within the same premises to circuits of same voltage, frequency and supply (AC or DC), in accordance with NEC® 406.4(F) and 406.8 and with CE Code, part I, Rule 26-700(3).

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Connection
Screw Terminal
Conductor Size
#14 AWG to #10 AWG
Country of Origin
PR
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
4
Number_Of_Wires
5
Phase
Multi Phase
Size
3.28 X 1.72 X 1.27
Special Features

  • 0.04 in brass back plate
  • 0.04 in brass contact spring material
  • 0.04 in brass ground contact
  • 0.05 in brass bridge mounting strap
  • 0.06 in brass spring binding plate
  • 20 A 12 AWG and 30 A 10 AWG terminal accommodation
  • 2000 VAC minimum dielectric voltage withstand
  • 5-wire grounding
  • Black thermoset base
  • Black thermoset top cover
  • Certified for current interrupting at full rated current
  • Heat resistant thermoset construction
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Non-interchangeable center slot configuration to be designated to different circuits
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • Unique A center pin
  • V0 per UL94/CSA 22.2 No 0.17 flammability
  • Zinc plated 0.05 in steel rivet material
  • Zinc plated steel mounting screws
Standard
Certified to CSA C22.2 No.42;Listed to UL 498
Sub_Brand
Twist-Lock Devices
Temperature_Rating
-40 to 75
Type
Single
Voltage Rating
600/250
Wattage
18000
