Hubbell Hubbell HBL3768


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 50A 250V DC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA,Screw Terminal, Black, With Lift Cover

Modified Industry Description

50A 250V DC/600V AC FLANGE

AD Description

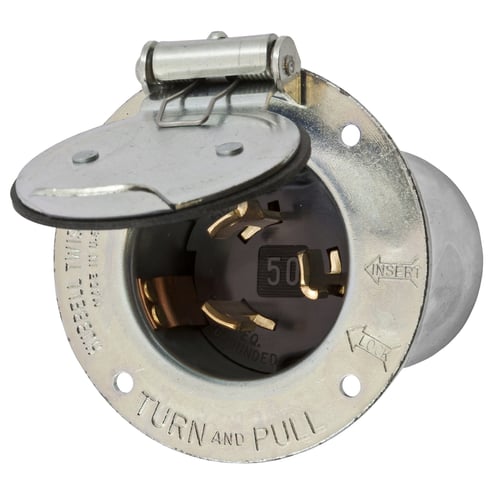

Wiring Device-Kellems Twist-Lock® HBL3768 3-Phase Extra Heavy Duty Grounding Standard Locking Flanged Inlet With Lift Cover, 600 VAC/250 VDC, 50 A, 3 Poles, 4 Wires, Metallic

Specifications

Amperage Rating
50
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Metallic
Connection
Pressure Screw Terminals
Conductor Size
#6AWG
Country of Origin
PR
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
4
Phase
3
Size
2.17 X 3.50 X 2.56
Special Features

  • 50 A 6 AWG terminal accommodation
  • 6 AWG wire
  • Brass blade
  • Indoor dry environmental conditions unless protected by additional means
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • Metallic flanged casing provides maximum strength and protection
  • Non-NEMA rated
  • Screw mounted
  • Steel pressure screw, zinc plate ground screw
  • Steel weldment flanged casing
  • Steel, zinc plated mounting screw
  • Terminals identified in accordance with UL 498 (x, y, z, white, green)
  • Thermoset interior provides superior heat resistance
  • Withstands 2000 VAC minimum dielectric voltage
Standard
Certified to CSA C22.2 No.42;Listed to UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Flanged Inlet
Voltage Rating
600/250
Wattage
30
