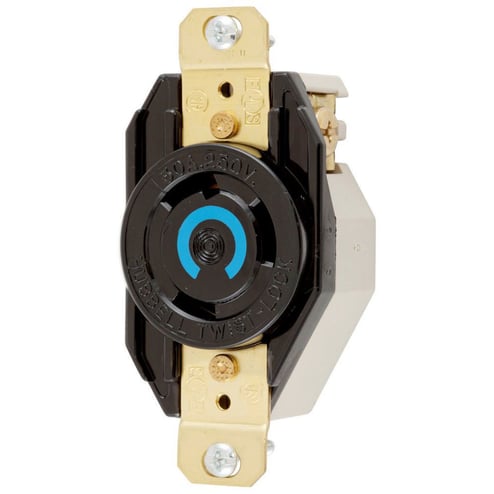

Hubbell Hubbell HBL2620
Hubbell HBL2620
Kirby Risk #: 489023
UPC: 78358523599, 783585235998, 00783585235998
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Twist-Lock, Industrial,Flush Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, ScrewTerminal, Black
Modified Industry Description
30A 250V - BLACK LOCKING Flush Receptacle, 2 Pole, 3 Wire
AD Description
Wiring Device-Kellems Twist-Lock® HBL2620 Grounding Heavy Duty Single Locking Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Screw Terminal
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
L6-30R
|
| NEMA_Rating |
L5-30R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single
|
| Voltage Rating |
250
|
| Wattage |
7500Watts
|
