Hubbell Hubbell HBL2450


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, L19-20R, Screw Terminal, Black

Modified Industry Description

20A 277/480V RECPT BLACK

AD Description

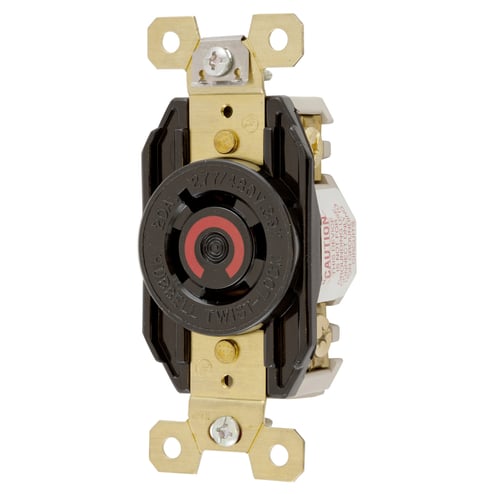

Hubbell® Twist-Lock® HBL2450 Flush Mount Standard Single Locking Receptacle, 277/480 VAC, 20 A, 4 Poles, 4 Wires, Black

Specifications

Amperage Rating
20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Connection
Screw Terminal
Conductor Size
#14 AWG to #8 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
NEMA L19-20R
Number_Of_Poles
4
Number_Of_Wires
4
Phase
3
Size
Standard Sized Product
Special Features

  • 0.04 in brass back plate
  • 0.04 in brass contact spring material
  • 0.04 in brass ground contact
  • 0.05 in brass bridge mounting strap
  • 20 A 12 AWG terminal accommodation
  • 2000 VAC minimum dielectric voltage withstand
  • 3-phase, star connection 277/480 VAC
  • 4-wire non-grounding
  • All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Black nylon top cover
  • Brass rivet
  • Certified for current interrupting at full rated current
  • Face color coding by voltage facilitates locating and mating of proper devices
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Nylon polyester base
  • Stainless steel auto ground clip
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • V2 or better per UL94/CSA 22.2 No 0.17 flammability
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Zinc plated steel mounting screws
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Flush Mount Standard Single
Voltage Rating
277/480
Wattage
9.6k
