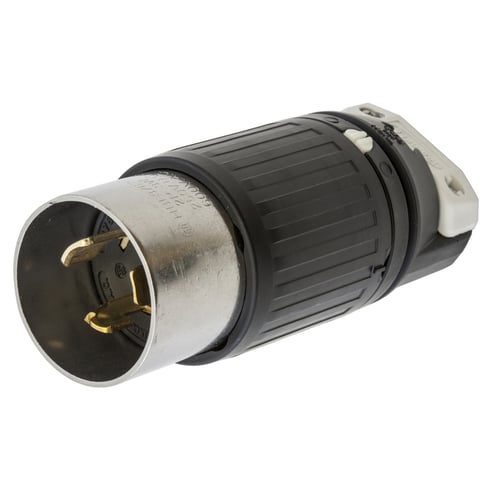

Hubbell Hubbell HBL3763C
Hubbell HBL3763C
Kirby Risk #: 488849
UPC: 78358523561, 783585235615, 00783585235615
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 50A 250V DC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, ScrewTerminal, Black
Modified Industry Description
50A 250V DC/600V AC PLUG BLACK
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3763C 1-Phase Extra Heavy Duty Grounding Standard Locking Plug, 600 VAC/250 VDC, 50 A, 3 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black and White
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
#6 AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
Non NEMA
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Insulgrip
|
| Voltage Rating |
600
|
| Wattage |
30000
|
