Hubbell Hubbell HBL3762C
Hubbell HBL3762C
Kirby Risk #: 488795
UPC: 78358523555, 783585235554, 00783585235554
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

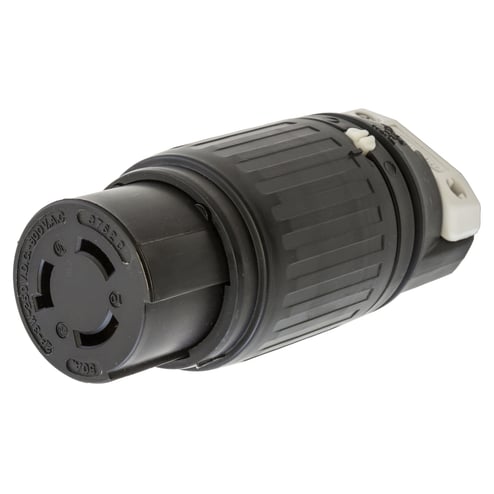

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 50A 250V DC/600V AC, 2-Pole 3-Wire Grounding,Non-NEMA, Screw Terminal, Black
Modified Industry Description
3 WIRE, 50A, 250V DC / 600V - 2 POLE - LOCKING FEMALE CONNECTOR
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3762C Heavy Duty Isolated Grounding Standard Sized Female Connector, 600 VAC, 250 VDC, 50 A, 2 Poles, 3 Wires, Black/White
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Conductor Range |
#6AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Nylon
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Non-Grounding
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
2.56 X 2.56 X 6.50
|
| Special Features |
|
| Standard |
Certified to CSA C22.2 No.42;Listed to UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Connector Body
|
| Voltage Rating |
600/250
|
