Hubbell Hubbell HBL2743SW
Hubbell HBL2743SW
Kirby Risk #: 488719
UPC: 78358523202, 783585232027, 00783585232027
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, FemaleConnector Body, 30A 3-Phase Delta 600V AC, 3-Pole4-Wire Grounding, L17-30R, Screw Terminal, Black and White
Modified Industry Description
30A 600V CONN BLACK WHITE WATERTITHG SAFETY SHROUD
AD Description

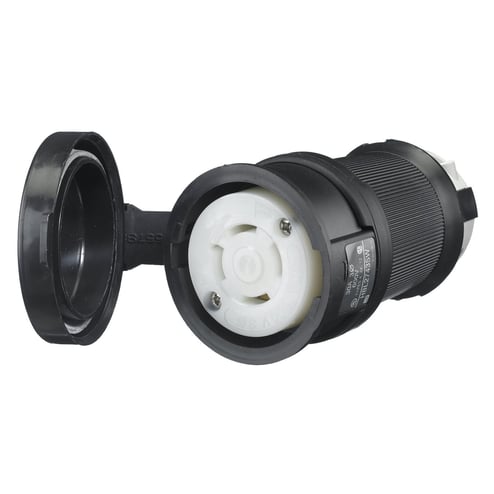

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2743SW Heavy Duty Watertight Locking Connector, 600 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Enclosure |
NEMA 4/4X/6/6P/12/IP65/66/67
|
| Environmental_Conditions |
Watertight
|
| Grade |
Commercial/Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L17-30R
|
| NEMA_Rating |
L17-30R
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Size |
2.75 X 2.75 X 4.40
|
| Special Features |
|
| Standard |
UL Listed, CSA Certified To Type 4, 4X And Type 12
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact.
|
| Type |
Connector Body
|
| Voltage Rating |
600
|
