Hubbell Hubbell HBL2620SW
Hubbell HBL2620SW
Kirby Risk #: 488625
UPC: 78358523166, 783585231662, 00783585231662
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R,Screw Terminal, Black
Modified Industry Description
30A 250V RECPT BLACK SAFETY SHROUD
AD Description

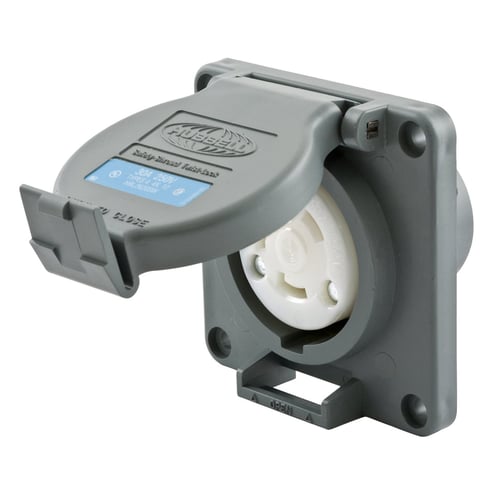

Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2620SW Grounding Heavy Duty Safety Shroud Watertight Single Locking Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, Gray/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial Shrouded Watertight
|
| Brand Name |
Hubbell
|
| Color |
Gray/White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4/4X/12/IP66
|
| Environmental_Conditions |
Watertight
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA L6-30R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Heavy Duty Safety Shroud Watertight Single
|
| Voltage Rating |
250
|
| Wattage |
7.5k
|
