Hubbell Hubbell HBL2613SW
Hubbell HBL2613SW
Kirby Risk #: 488623
UPC: 78358523162, 783585231624, 00783585231624
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

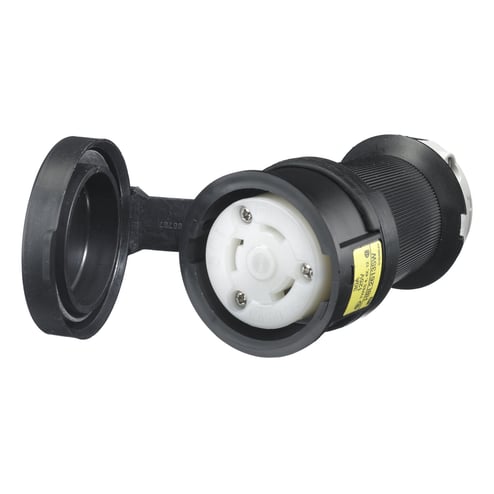

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Female Conector Body, 30A 125V, 2-Pole 3-Wire Grounding,L5-30R, Screw Terminal, Black and White
Modified Industry Description
30A 125V CONN BLACK WHITE WATERTIGHT SAFETY SHROUD
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2613SW Heavy Duty Grounding Locking Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Enclosure |
IP66
|
| Environmental_Conditions |
Water Tight
|
| Grade |
Commercial/Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA 4/4X/12/L5-30R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Heavy Duty Grounding
|
| Voltage Rating |
125
|
