Hubbell Hubbell HBL2610SW


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R,Screw Terminal, Gray

Modified Industry Description

30A 125V RECPT GRAY WATERTIGHT SAFETY SHROUD

AD Description

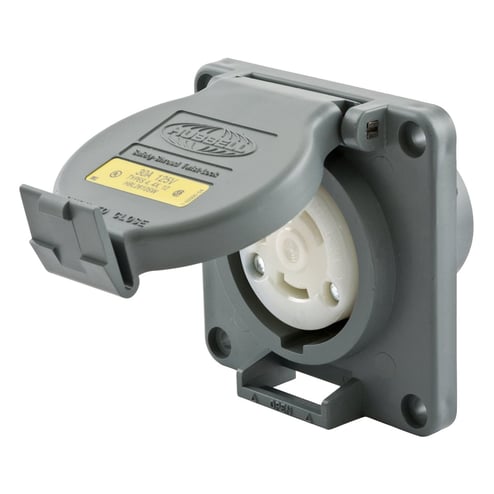

Hubbell® Twist-Lock® Safety-Shroud® HBL2610SW Shrouded Watertight Locking Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Gray

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial Shrouded Watertight
Brand Name
Hubbell
Color
Gray
Connection
Screw Terminal
Conductor Size
#12 AWG to #8 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Enclosure
IP20
Environmental_Conditions
Watertight
Material
PBT
Mounting
Screw Mount
NEMA_Rating
NEMA L5-30R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • 0.031 in brass contact spring
  • 0.031 in brass ground contact
  • 0.031 in brass spring binding plate
  • 2000 VAC minimum dielectric voltage withstand
  • 3-wire grounding
  • 30 A 10 AWG terminal accommodation
  • 302/304 multi-drive stainless steel mounting screw
  • 302/304 stainless steel cover hinge pin
  • 302/304 stainless steel cover spring
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are easily visible even when in use
  • Catalog number and color coded voltage rating are visible even when in use
  • Certified for current interrupting at full rated current
  • Closed cell neoprene foam lid and flange gasket material
  • Gray Valox® housing and flange material
  • High impact, thermoplastic housing for heavy duty industrial environments
  • Impact modified PBT housing
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Natural white nylon body contact carrier material
  • Shrouded watertight construction
  • Steel rivet material
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • UL type 4X environmental seal while in use and when closed
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Shrouded Watertight
Voltage Rating
125
Wattage
3,750
