Hubbell Hubbell HBL23000HG
Hubbell HBL23000HG
Kirby Risk #: 488397
UPC: 78358501571, 783585015712, 00783585015712
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, HospitalUse, Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA,Screw Terminal, Black
Modified Industry Description
20A 125V - BLACK HOSPITAL RECEPTACLE
AD Description

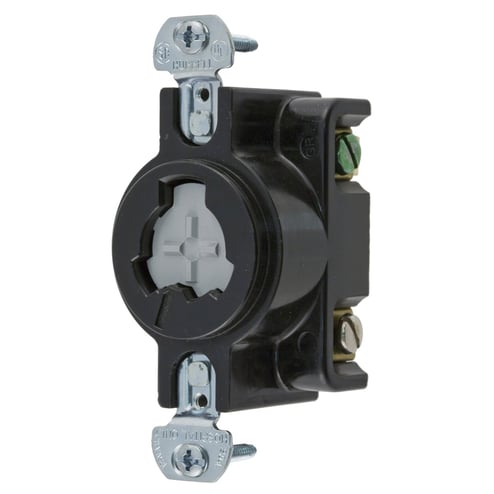

Wiring Device-Kellems Hubbellock® HBL23000HG Grounding Single Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Hospital Use Only Hubbellock
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Hospital
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Single
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
