Hubbell Hubbell HBL7310B
Hubbell HBL7310B
Kirby Risk #: 487796
UPC: 78358533362, 783585333625, 00783585333625, 03083585333623
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

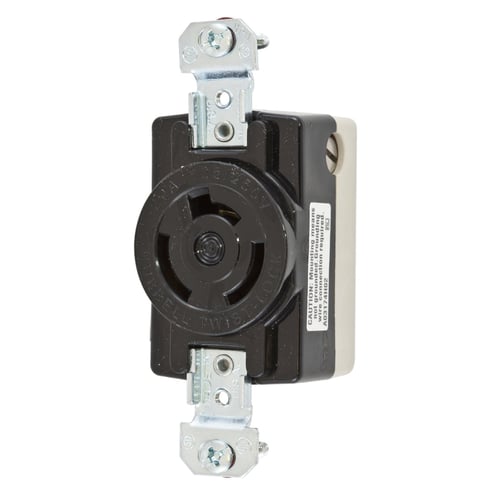

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flush Receptacle, 20A 125/250V, 3-Pole 3-Wire Non Grounding, Non-NEMA,Screw Terminal, Black
Modified Industry Description
20A 125/250V - BLACK LOCKING Flush Receptacle, 3 Pole, 3 Wire
AD Description
Wiring Device-Kellems Twist-Lock® HBL7310B Heavy Duty Single Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Screw Terminal
|
| Conductor Size |
#12 AWG to #10 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
Non NEMA
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Heavy Duty Single
|
| Voltage Rating |
125/250
|
| Wattage |
5000Watts
|
