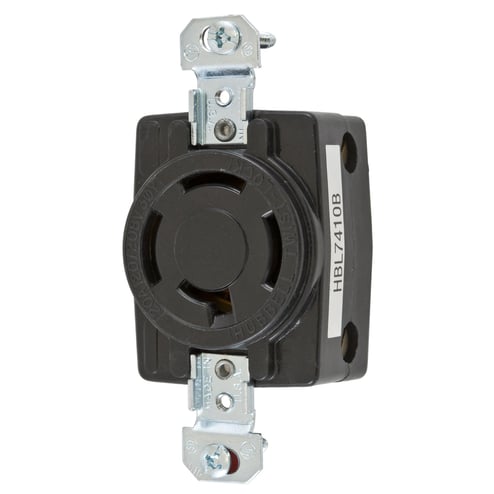

Hubbell Hubbell HBL7410B
Hubbell HBL7410B
Kirby Risk #: 487778
UPC: 78358533352, 783585333526, 00783585333526
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Twist-Lock, Industrial,Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, Black
Modified Industry Description
20A 120/208V - BLACK LOCKING Flush Receptacle, 4 Pole, 4 Wire
AD Description
Wiring Device-Kellems Twist-Lock® HBL7410B Heavy Duty Single Locking Receptacle, 120/208Y VAC, 20 A, 4 Poles, 4 Wires, Black
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Screw Terminal
|
| Conductor Size |
#12 AWG to #10 AWG
|
| Country of Origin |
PR
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Nylon
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
Non NEMA
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
4
|
| Size |
3.61 X 1.71 X 1.28
|
| Special Features |
|
| Standard |
UL 498
|
| Sub_Brand |
Twist-Lock Devices
|
| Temperature_Rating |
-40 to 75
|
| Type |
Single
|
| Voltage Rating |
120/208
|
| Wattage |
4160Watts
|
