Hubbell Hubbell HBL5235
Hubbell HBL5235
Kirby Risk #: 487356
UPC: 78358501411, 783585014111, 00783585014111
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, SpecialtyReceptacles, Clock Hanger, Receptacle and Plate, 15A 125V, 2-Pole 3-WireGrounding, 5-15R, Stainless, Brown, Single Pack
Modified Industry Description
15A 125V RECPT BROWN
AD Description

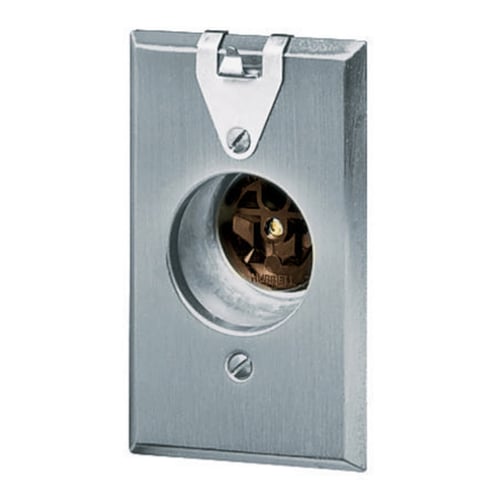

Wiring Device-Kellems HBL5235 1-Phase Grounding Standard Sized Clock Hanger Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Clock Hanger
|
| Brand Name |
Hubbell
|
| Color |
Brown
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG to #10 AWG
|
| Country of Origin |
CN
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
5-15R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Size |
Standard Sized
|
| Special Features |
Clock Hanger
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Special Application Receptacles
|
| Voltage Rating |
125
|
| Wattage |
1875Watts
|
