Hubbell Hubbell HBL5678C
Hubbell HBL5678C
Kirby Risk #: 487060
UPC: 78358517595, 783585175959, 00783585175959
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Male Inlets,Flanged, Industrial/Commercial, 15A 250V, 2-Pole 3-Wire Grounding, 6-15P, White, Single Pack
Modified Industry Description
15A 250V MALE FLGD INLET NEMA 6-15P
AD Description

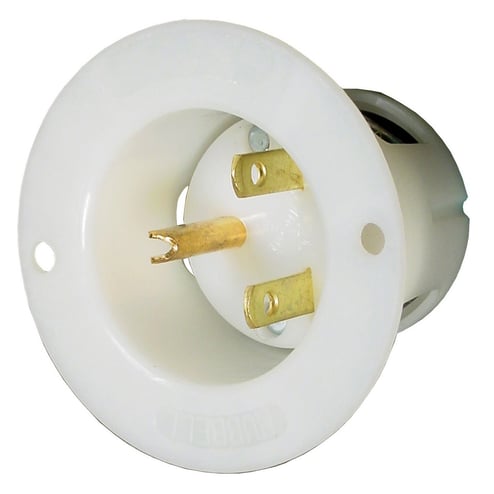

Wiring Device-Kellems Insulgrip® HBL5678C 1-Phase Male Standard Straight Blade Flanged Inlet, 250 VAC, 15 A, 2 Poles, 3 Wires, White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14AWG to #12AWG
|
| Country of Origin |
PR
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Frequency_Rating |
50/60
|
| Grade |
Commercial/Industrial
|
| Insulation |
Insulated Body
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA 6-15P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
1-Phase Male Standard
|
| Voltage Rating |
250
|
| Wattage |
3,750
|
