Hubbell Hubbell HBL4716C
Hubbell HBL4716C
Kirby Risk #: 486719
UPC: 78358517105, 783585171050, 00783585171050
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

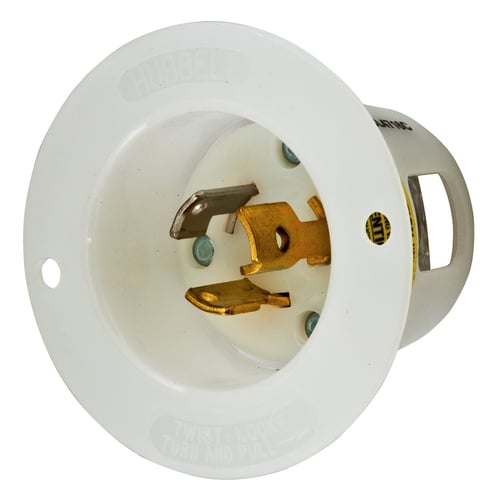

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, L5-15P, ScrewTerminal, White
Modified Industry Description
15A 125V - LOCKING Flanged Inlet, 2 Pole, 3 Wire
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL4716C Heavy Duty Grounding Locking Flanged Inlet With Mounting Screw, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminals
|
| Conductor Size |
#14 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Flange
|
| NEMA_Configuration |
L5-15P
|
| NEMA_Rating |
NEMA L5-15P
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single Phase Motors
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Heavy Duty Grounding
|
| Voltage Rating |
125
|
| Wattage |
1875
|
