Hubbell Hubbell HBL4715C
Hubbell HBL4715C
Kirby Risk #: 486700
UPC: 78358517100, 783585171005, 00783585171005
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

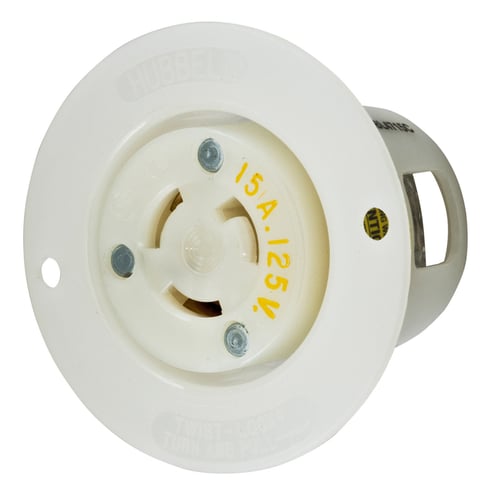

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, ScrewTerminal, White
Modified Industry Description
15A 125V - LOCKING Flanged RECEPTACLE, 2 Pole, 3 Wire
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL4715C Flanged Grounding Single Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4X/12/IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Flanged
|
| NEMA_Configuration |
L5-15R
|
| NEMA_Rating |
NEMA L5-15R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Flanged Grounding Single
|
| Voltage Rating |
125
|
| Wattage |
1875Watts
|
