Hoffman Hoffman E10PBX


Description

Industry Description

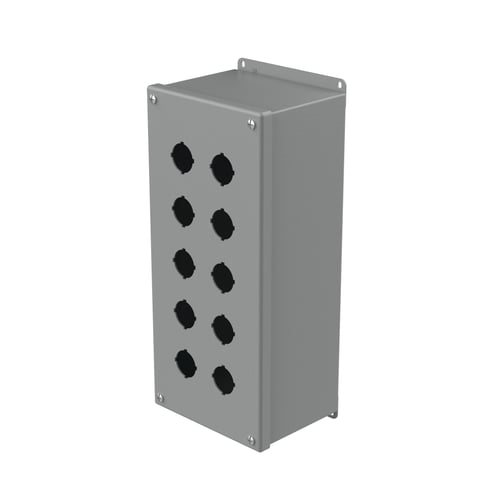

Extra-Deep Pushbutton Enclosures, Type 12, 10PB x 30.5mm, Gray, Steel

Modified Industry Description

30.5 MM PUSHBUTTON ENCLOSURE, 10 HOLES, EXTRA DEEP, 14 X 6.25 X 4.75 IN

AD Description

Hoffman E10PBX PB1 Extra Deep Pushbutton Enclosure, 14 in L x 6-1/4 in W x 4-3/4 in D, 10 Outlets, NEMA 12/IP65 NEMA Rating, Steel

Vendor Description

Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with added depth to accommodate additional pushbutton contact blocks.

Specifications

Application
Standard oil-tight pushbuttons, switches and pilot lights.
Brand Name
Hoffman
Color
Gray
Country of Origin
MX
Material
Steel
NEMA_Rating
12 Indoor, dust-resistant
Number_Of_Holes
10
Size
10PB X 30.5mm
Special Features

  • 16 or 14 ga steel
  • Bonding provision on cover
  • Captivated cover screws thread into sealed wells
  • Designed to hold 30.5 mm and 22.5 mm pushbuttons and switches, with added depth to accommodate additional pushbutton contact blocks
  • Enclosures 6 x 4 x 4-3/4 in (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • External wall mounting brackets for easy installation
  • Factory stamped 4-way pushbutton holes
  • Grounding nut in body of enclosure
  • Oil-resistant gasket
  • Seams continuously welded and ground smooth
Standard
UL 508A Listed; Type 12, 13; File No. E61997; cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997; NEMA/EEMAC Type 12, 13; CSA File Number 42186: Type 12; IEC 60529, IP65
Sub_Brand
Hoffman
Type
Extra-Deep 30.5-mm and 22.5-mm Pushbutton Enclosures, Type 12
