Hoffman Hoffman E10PB

Name: Hoffman E10PB
Brand: Hoffman
SKU: 486660
Price: 276.61 USD
Availability: InStock

Hoffman E10PB

Kirby Risk #: 486660

UPC: 78351057860, 783510578602, 00783510578602, 01783510578601

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hoffman

Description

Industry Description

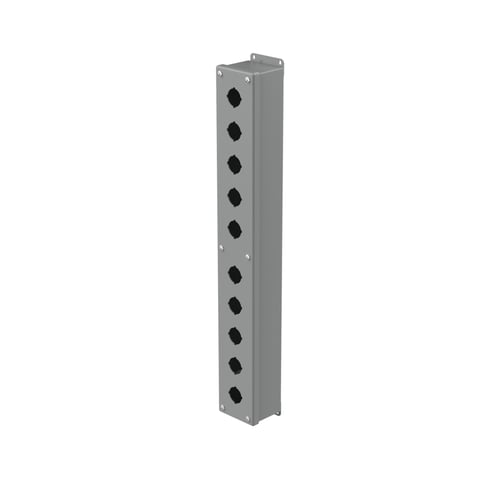

Pushbutton Enclosures, Type 12, 10PB x 30.5mm, Gray, Steel

Modified Industry Description

10 PB ENCLOSURE 24.75X3.25X2.7

AD Description

Hoffman E10PB PB1 Pushbutton Enclosure, 24-3/4 in L x 3-1/4 in W x 2-3/4 in D, 10 Outlets, NEMA 12/IP65 NEMA Rating, Steel

Vendor Description

These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.

Application	These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.
Brand Name	Hoffman
Color	Gray
Country of Origin	MX
Cover_Type	Hinged
Material	Steel
NEMA_Rating	NEMA 12/IP65
Number_Of_Holes	10
Series	PB1
Size	10PB X 30.5mm
Special Features	16 or 14 ga steel Bonding provision on cover Captivated cover screws thread into sealed wells Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal External wall mounting brackets Factory stamped 4-way pushbutton holes Grounding nut in body of enclosure Oil-resistant gasket Seams continuously welded and ground smooth
Standard	UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12, 13, CSA File Number 42186: Type 12, IEC 60529, IP65
Sub_Brand	Hoffman
Type	30.5-mm and 22.5-mm Pushbutton Enclosures, Type 12
