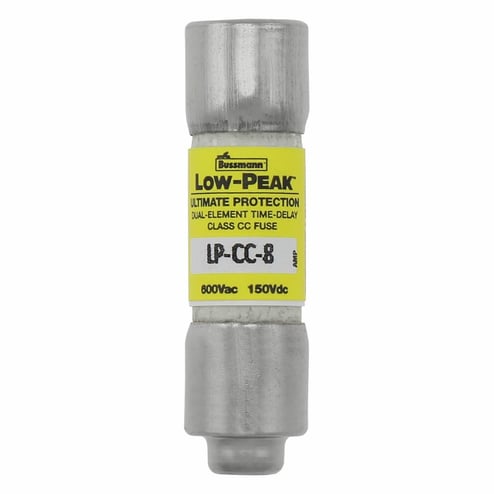

Bussmann Bussmann LP-CC-8


Description

Industry Description

8A 600V Class CC Low Peak Time Delay Fuse

Modified Industry Description

8A 600V - LOW PEAK TIME DELAY MIDGET FUSE, CLASS CC

AD Description

Bussmann Low-Peak™ LP-CC-8 Current Limiting Time Delay Fuse, 8 A, 600 VAC, 150 VDC, 20/200 kA, Class CC, Cartridge Body

Specifications

Amperage Rating
8
Application
Specialized Circuits, Industrial Control, Isolated, In-Line Fuse Holder
Brand Name
Bussmann
Characteristics
Time Delay
Connection
Ferrule End X Ferrule End
Country of Origin
MUL
Element
Dual
Interrupt_Rating
200000 Amp (RMS Symmetrical), 20000 Amp (DC UL198L)
Material
Melamine Tube
Model
LP-CC
Package_Quantity
1
Response_Time
12 S at 200%
Size
13/32 In Diameter X 1-1/2 In Length
Special Features

  • 12 s (minimum) at 200% of rated current response time
  • 200 kA at 600 VAC RMS symmetrical, 20 kA at 150 VDC (UL 198L) interrupt rating
  • 200 kA interrupting rating complies with NEC section 110.9 for today's large capacity systems
  • A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A
  • Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction
  • Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective coordination easy
  • Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
  • Fast short circuit protection and dual element, time delay performance provide ultimate protection
  • Proper sizing can provide "no damage" type 2 coordinated protection for NEMA and IEC motor controllers
  • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
  • Superior protection for small horsepower motor circuit
  • Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation
  • Very compact, with a physical size only 13/32 x 1-1/2 in with rejection tip
Standard
UL 248-4, CSA, CE
Sub_Brand
Cooper Bussmann
Type_Of_Indicators
Non-Indicating
Type
Current Limiting, Time Delay
Voltage Rating
600
