Hubbell Hubbell HBL3433C
Hubbell HBL3433C
Kirby Risk #: 485517
UPC: 78358503989, 783585039893, 00783585039893
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

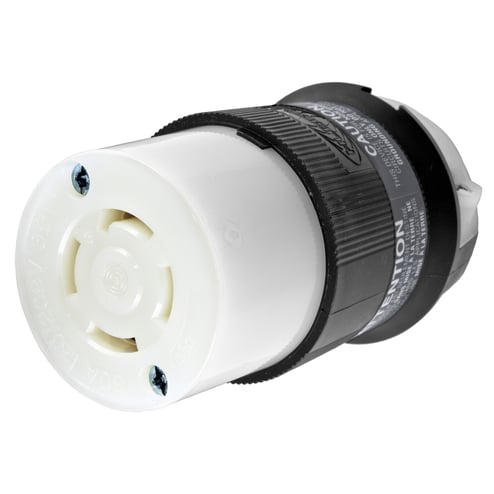

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 30A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, Black and White
Modified Industry Description
30A 120/208V - LOCKING FEMALE CONNECTOR, 4 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3433C 3-Phase Isolated Non-Grounding Female Connector, 120Y/208 VAC
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black and White
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
Non NEMA
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Non-Grounding
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Poles |
4
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75 DEG C; Minimum Continuous: -40 DEG C w/o impact, -25DEG with impact.
|
| Type |
Insulgrip
|
| Voltage Rating |
120/208
|
