Hubbell Hubbell HBL2823
Hubbell HBL2823
Kirby Risk #: 485408
UPC: 78358503970, 783585039701, 00783585039701
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

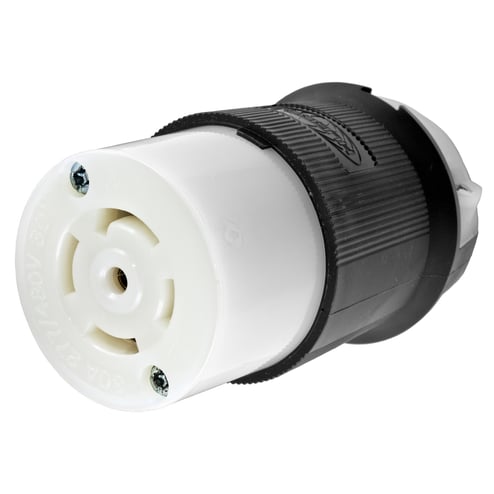

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-WireGrounding, L22-30R, Screw Terminal, Black and White
Modified Industry Description
30A 277/480V - LOCKING FEMALE CONNECTOR, 4 POLE, 5 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2823 Heavy Duty Non-Grounding Locking Connector, 277/480Y VAC, 30 A, 4 Poles, 3 Wires, Black/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black and White
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Nylon
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L22-30R
|
| NEMA_Rating |
L22-30R
|
| Number Of Conductors |
5-Wire Grounding
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Poles |
4
|
| Size |
2.33 X 2.33 X 3.86
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Twist-Lock
|
| Temperature_Rating |
-40 to 75
|
| Type |
Connector Body
|
| Voltage Rating |
277/480
|
