Hubbell Hubbell HBL2816
Hubbell HBL2816
Kirby Risk #: 485389
UPC: 78358503968, 783585039688, 00783585039688
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 30A 3-Phase Wye120/208V AC, 4-Pole 5-Wire Grounding,L21-30R, Screw Terminal , White
Modified Industry Description
30A 120/208V FLANGE
AD Description

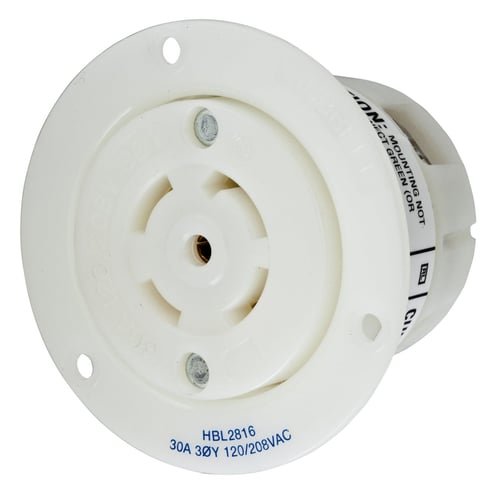

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2816 Flanged Standard Single Locking Receptacle, 120Y/208 VAC, 30 A, 4 Poles, 5 Wires, White
Vendor Description
Hubbell Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. It's these and many other features that set Hubbell performance above all others.
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
L21-30R
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Flanged Single
|
| Voltage Rating |
120/208
|
| Wattage |
6,240
|
