Hubbell Hubbell HBL27CM13
Hubbell HBL27CM13
Kirby Risk #: 485372
UPC: 78358503956, 783585039565, 00783585039565
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

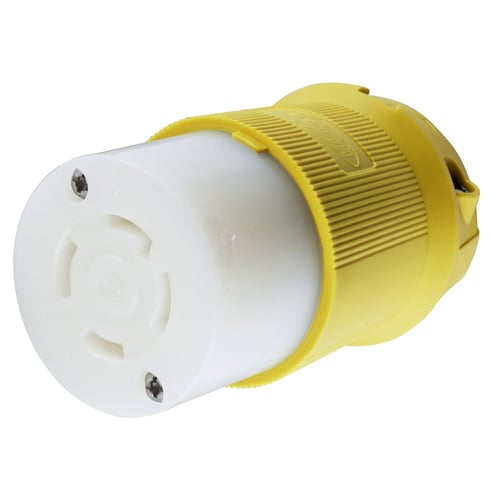

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Female Connector Body, 125/250V, 3-Pole 4-Wire Grounding, L14-30R, ScrewTerminal, Yellow
Modified Industry Description
4 WIRE, 30A, 125/250V - 3 POLE - LOCKING MARINE FEMALE CONNECTOR
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL27CM13 Heavy Duty Isolated Grounding Standard Sized Female Connector
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
L14-30R
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Insulgrip
|
| Voltage Rating |
125/250
|
