Hubbell Hubbell HBL2746

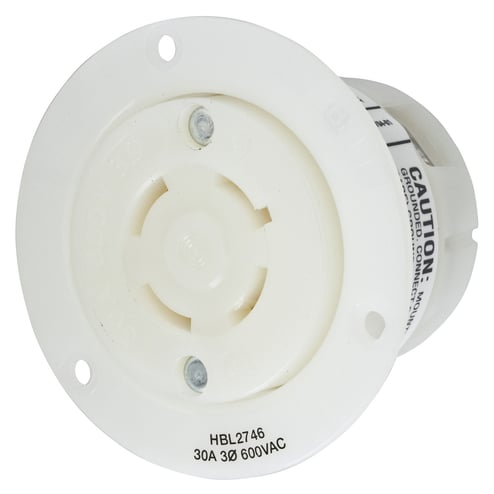

Hubbell HBL2746
Kirby Risk #: 485311
UPC: 78358503942, 783585039428, 00783585039428
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding,L17-30R, Screw Terminal, White
Modified Industry Description
LOCKING FEMALE FLGD RCPT NEMA
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2746 Flanged Grounding Single Locking Receptacle, 600 VAC, 30 A, 3 Poles, 4 Wires, White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4X/12/IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA L17-30R
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Flanged Grounding Single
|
| Voltage Rating |
600
|
| Wattage |
18
|
