Hubbell Hubbell HBL2736

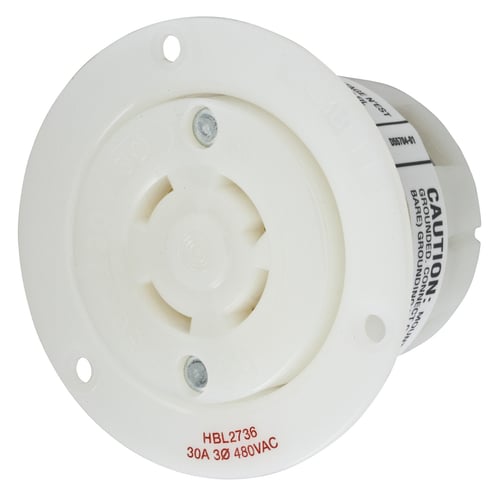

Hubbell HBL2736
Kirby Risk #: 485248
UPC: 78358503936, 783585039367, 00783585039367
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding,L16-30R, Screw Terminal, White
Modified Industry Description
30A 480V - LOCKING FLANGED RECEPTACLE, 3 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2736 Flanged Grounding Single Standard Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, White
Vendor Description
Hubbell Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. It's these and many other features that set Hubbell performance above all others.
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Flanged
|
| NEMA_Configuration |
L16-30R
|
| NEMA_Rating |
L16-30R
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Flanged Single
|
| Voltage Rating |
480
|
| Wattage |
14400Watts
|
